Choosing the suitable FPV receiver module can be overwhelming with so many available options. But don’t worry; we’ve got you covered. In this article, we’ll take a deep dive into the top FPV video receiver modules on the market, examining their unique features and specifications.
The HDZero VRX Digital HD Receiver Module is a high-performing, advanced video receiver designed for FPV goggles. It has a 5.8GHz frequency and supports 720p resolution at 60 frames per second, making it perfect for high-definition video transmission. This receiver module is compatible with the HDZero and Shark Byte video transmitters, providing you with a wide range of options for your FPV setup.
One of the key features of the HDZero VRX Receiver is its 4 external SMA antenna connections. This allows you to choose the best antenna for your needs, whether you’re looking for long-range or strong signal penetration. The module also comes with mounting rails, which provide a secure way to attach custom patch antennas and other types of antennas.
The HDZero VRX Receiver has a compact and lightweight design, making it easy to install and transport. It has a size of 105mm x 47mm x 30mm and weighs only 85g. The receiver also has a power input of 7V-26V, which is compatible with 2S-6S batteries, and a video connector of HDMI. The RF sensitivity is -105dBm, and the RF connector is 4 x SMA.
In summary, the HDZero VRX Digital HD Receiver Module is a powerful and versatile receiver that is perfect for high-definition video transmission. Its advanced features and compatibility with multiple video transmitters make it an excellent choice for your FPV setup.
The Walksnail Avatar VRX is an advanced video transmission device that offers a cutting-edge experience for FPV enthusiasts. It features industry-leading H.265 encoding technology, which enables 1080P/60fps transmission with minimal delay of 22ms. This allows for clear, high-definition video that takes your FPV experience to new heights.
You can choose from the VRX alone or select one of the combo kits that come with a VTX and camera. The VRX has a lightweight design of 83g and supports a maximum transmission distance of more than 4km. It also supports 1080P 60FPS or 720P 100FPS and Betaflight Canvas Mode. The device is compatible with analog goggles and has an HDMI out feature. The Walksnail VRX is ultra-thin with a size of 1145522mm, making it easy to carry.

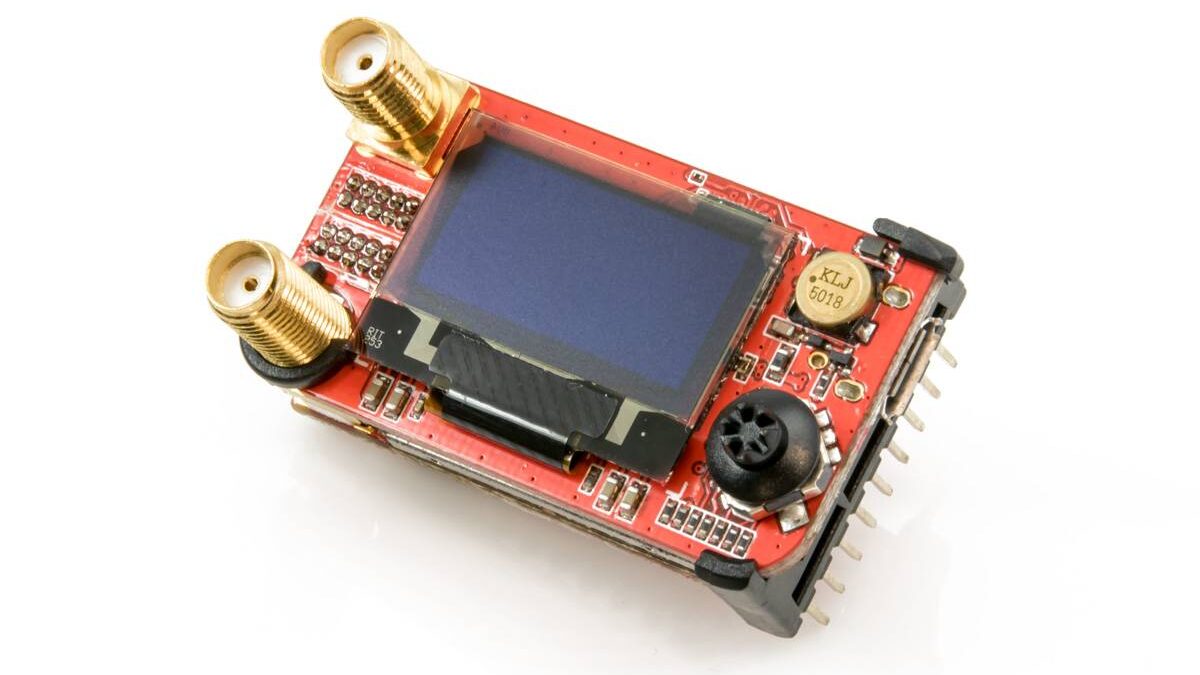

The ImmersionRC Rapidfire receiver is a top-of-the-line device that offers an unparalleled viewing experience for FPV enthusiasts. Utilizing advanced technology, it blends the best signals from each antenna to deliver a clear and detailed video feed. This receiver is compatible with a wide range of goggles, including the v1, v2, v3, SE, HD1, HD2, HD3, HDO, and Attitude v3/v4 Dominator LCD goggles.
One of the standout features of the Rapidfire is its responsive OLED display that can be easily navigated using a 5-way joystick. The built-in OSD provides important feedback on the signal strength and frequency parameters. The receiver also includes a band scanning feature, the ability to save favorite channels, a live single-channel spectrum display, and a built-in spectrum analyzer.
The Rapidfire includes accessories such as module doors for Dominator and Attitude, an aux power PCB for the Headtracker slot, and a flat flex cable. It has a sensitivity of -96dBm and can be powered by 5V at around 350mA. Additionally, it has an internal beeper that will sound an alarm to warn of marginal reception. This receiver also allows users to switch between Rapidfire, Classic Diversity, or Upper/Lower Rx options, which increases battery life.
The Shark Byte RX5.1 Rx Module is a cutting-edge digital HD system that offers near-zero latency High Definition 720p/60FPS video on Fat Shark HDO2, HDO, HD3, and other goggles. It is designed to support up to eight operators on standard 5.8GHz FPV frequencies and can be used in conjunction with analog systems without interference.
The goggle-mounted module has an integrated DVR and directional antenna, which enables seamless switching between digital and analog modes. Plus, the goggles can be stored in their case without the need to remove the digital module. It can be powered by an existing Fat Shark battery or a standard 3S or 4S battery pack with an XT-60 terminated adapter and a regulator.
The Shark Byte RX5.1 Rx Module has a weight of 80.3g and dimensions of 105 x 21 x 39mm. It operates at frequencies of 5.725-5.850GHz and has an input power of 5.5mm Barrel Connector, 8-16V Center Pin Positive. It can work in a wide range of temperatures from 32°-104°F (0°-40°C) and is compatible with Fat Shark Dominator series headsets.
It is a perfect solution for users who want to experience high-definition video quality and stable signal strength even in challenging conditions. With its cutting-edge features and advanced technology, the Shark Byte RX5.1 Rx Module is an excellent choice for FPV enthusiasts.
The Foxeer Wildfire is another top-of-the-line receiver module designed for Fat Shark Dominator Goggles users, providing an improved FPV experience. It utilizes advanced RF technology to enhance the VTx feed, even in areas with multiple radio signals.
One of the key features of the VRx module is its ability to maintain stability by switching to a standard diversity receiver when the RSSI value is low. The module is equipped with an OLED screen and supports OSD and firmware updates.
The Foxeer Wildfire is compatible with all Fatshark series goggles, including V1, V2, V3, HD1, HD2, HD3, SE, HDO, and HDO2. It operates on a 5.8 GHz 72CH frequency, with an RF sensitivity of -98dBm. The module has a power consumption of 5V 400mA±10% and requires a power supply of 5~16V. With a weight of 30g, it is lightweight and easy to install.
The TBS Fusion is a state-of-the-art FPV video receiver module that combines the expertise of three leading companies in the industry: BrainFPV for image processing, Achilles for OSD and UI, and TBS for hardware engineering and manufacturing.
This collaboration results in a module that surpasses the standard of merging two analog video streams. It utilizes active video fusion technology to provide a video feed with less breakup and more range, without any color deterioration or video desync.
The TBS Fusion also features a cutting-edge OSD engine that reduces the need for onboard OSD. It is compatible with TBS Crossfire and other devices and has a bonus lap timer and spectator modes for freestyle or race events.
Overall, the TBS Fusion offers more range, a better signal in indoor or other critical environments, and ultimate compatibility with your Crossfire radio link.
The Eachine Pro58 is a high-performance FPV video receiver module that offers a variety of features for the ultimate FPV experience. One of its key features is its duo-way working signal/diversity system. This allows for a more stable and reliable video feed, even in challenging environments.
The Eachine Pro58 also scans all frequencies, and the user can select the best result. This feature ensures you always have the best possible signal for your FPV flight. The module also has a user-friendly interface allowing easy and fast display of wireless information.
The Eachine Pro58 is also designed to work seamlessly with FatShark or similar goggles. It has 40ch, including RaceBand, and a sensitivity of -92dBi. The module can be powered by 5V and controlled by the goggles buttons, such as the ch+ and ch-. The module also has SMA and RP-SMA versions available.
Another convenient feature of the Eachine Pro58 is the built-in beeper that indicates your operations. This makes it easy to know when you’ve made changes to the module without having to take off your goggles.
The TBS Dominator is a receiver module designed explicitly for the Fatshark Dominator goggles. It boasts a high-sensitivity Rx module compatible with a wide range of 5.8GHz transmission systems, including those from popular brands like HobbyKing, Foxtech, and more. It works seamlessly with out-of-the-box systems like the SpyHawk FPV and transmitters compatible with Airwave, such as ImmersionRC. However, while compatibility with Airwave is provided, the quality may not be desirable.
The TBS Dominator is compatible with 40 channels across 5 bands and 8 channels each and has a channel scan trigger. It is also designed to work with BOSCAM A/V transmitters with 200mW, 400mW, and 500mW power output and can be installed into Fatshark Attitude goggles.
The ClearView Goggle Receiver Module is a high-performance receiver that incorporates ClearView’s advanced technology into a FatShark goggles form factor.
This VRx offers a smooth and stable FPV experience, eliminating issues such as screen tearing, jitters, and lost sync. It also features high sensitivity, minimizing video noise and providing a clear image.
Additionally, it has an extensive OSD menu on the goggle screen, a spectrum analyzer, a quad finder application, the ability to save favorite bands, and a thermostatically controlled fan for added reliability.
Firmware updates can also be done via PC. This receiver is a great choice for those looking for a reliable and high-performing receiver for their FPV needs.
The AKK Diversity Rx Module is a high-performance receiver that offers advanced features for FPV enthusiasts. With two RX modules and a sensitivity of -93dBm, it can quickly and accurately pick up signals for a stable and clear image. The module also has an OLED display that provides clear and accurate information, making it easy to use.
It also comes with a built-in low-power buzzer for added convenience.
The AKK Diversity Rx Module is compatible with FatShark goggles, making it a great choice for those who use these goggles. This receiver is a reliable and efficient solution for enhancing your FPV experience. The module is plug-and-play and can be easily used; no additional software or setup is required.
The AKK Diversity Rx Module is designed to work on 5.8GHz frequency and has 48 channels available. It also has an SMA Female antenna connector and an input voltage of 5V. The current consumption of this receiver is 5V @ 380mA-400mA.
Overall, the AKK Diversity Rx Module is an excellent choice for anyone looking for a high-performance and reliable receiver for their FPV experience. It offers a range of advanced features and is compatible with FatShark goggles, making it a versatile and convenient option.
The FuriousFPV True-D V3 40CH Diversity Module is a high-performance receiver designed for FPV enthusiasts, with advanced features such as an ergonomic 3-button layout, power on/off function, increased RSSI, and better antenna switching algorithm. It has a built-in low-power buzzer, separate modules to decrease thermal loading, and a new USB port for easy firmware updates.
The receiver also has true diversity functionality, smooth switch video switching technology, raceband channel ready, multiple channel modes, and an ultra-compact design compatible with FatShark Dominator and other goggles. It also has a built-in easy-view LCD screen for easy setup. It supports an operating frequency of 5.8GHz and has 40 channels.

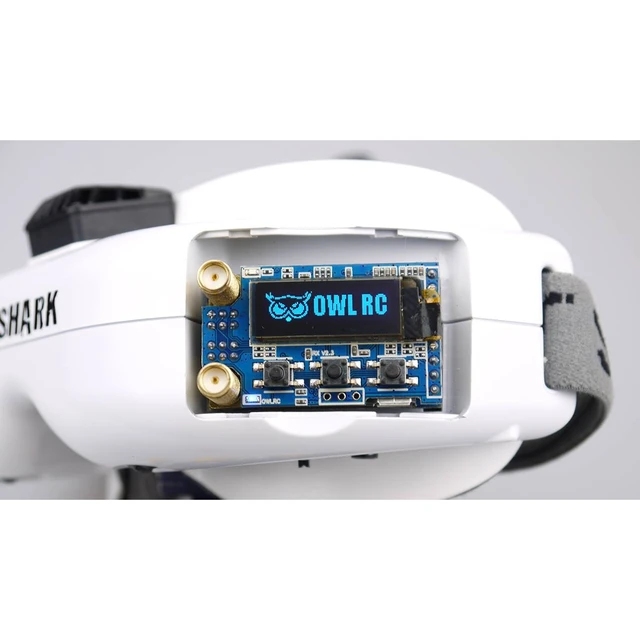

OWLRC OwlRX 5.8G Diversity FPV Video Receiver
The OwlRC VRx Module is a budget-friendly yet high-performing receiver designed for FPV goggles. With its 16KHz diversity switching frequency, it offers advanced features that rival those of more expensive options such as LaForge and True-D. It is even approaching the performance of the RapidFire receiver at a fraction of the cost.
The module supports all 5.8GHz (A, B, E, F, R FPV bands) and 40 channels and is compatible with all Dominator LCD goggles, V1, V2, V3, HD1, HD2, HD3, SE, HDO, and Attitude V3, V4. The module has 3 tactile buttons on the front and a 0.91″ 128×32 OLED display. It also comes with an OSD and requires a power of 5v with a consumption of 350mA typical. This is an excellent choice for those looking for a high-performing receiver that won’t break the bank.

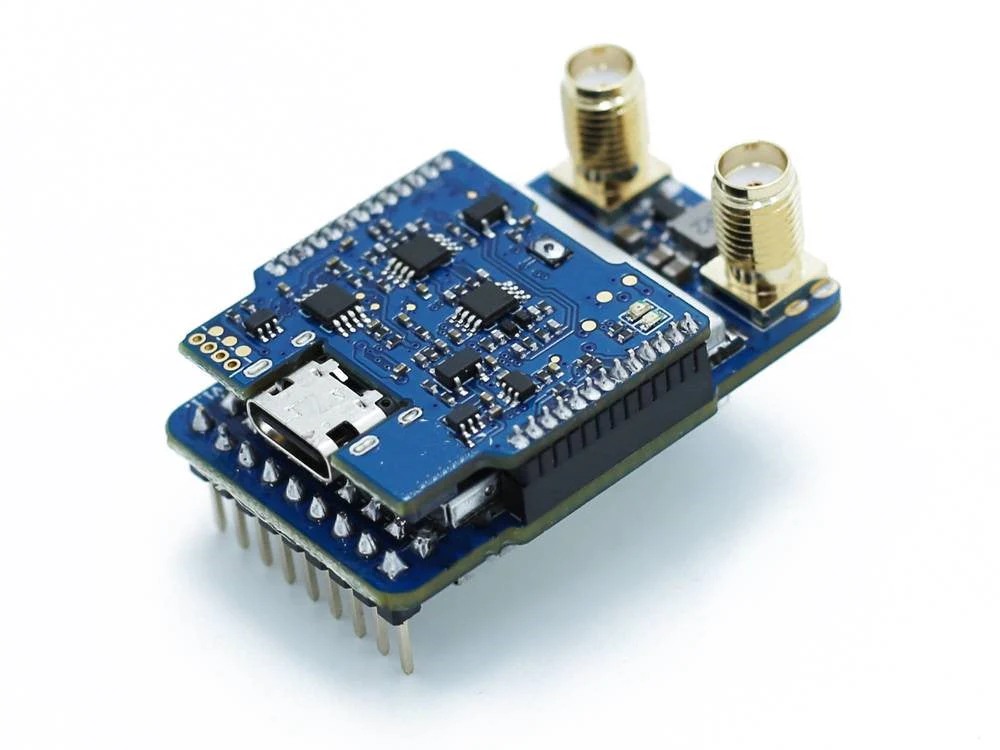

The Skyzone Steadyview Receiver Module is designed to enhance the performance of FPV goggles. It has the ability to merge two video signals into one, resulting in a more stable and clear image, even in challenging conditions. This module operates at a frequency of 5.8GHz and is compatible with 48 channels. It is an OEM part and does not come with packaging or a manual.
The module is compatible with newer Skyzone goggles, which allows the use of “Quadversity” mode by installing a second receiver module. This allows the user to utilize 2 additional antennas for optimal performance. It is also suitable for EV300O goggles, but it is important to note that if your receiver version is Diversity, you need to purchase the Steadyview, not the Fusion Board.
What are the advantages of using a Fatsharks module?
Fatshark’s modules offer high performance, reliability, clear and stable image quality, compatibility with various goggles, advanced technology for interference reduction, multiple antenna connections, user-friendly interfaces with built-in OSD and firmware updates support, and design for crowded frequency environments. They are widely used and have a good reputation in the FPV community.
Can I use these receiver modules in my DJI fpv goggles v1 and V2?
Yes, you can, by using a digiadapter module bay. A digiadapter module bay is an accessory that allows you to install various receiver modules into your DJI goggles, allowing you to choose the best VRx module for your specific needs and preferences.
How can I choose a good FPV receiver module for my drone?
When choosing an FPV receiver module for your drone, there are several factors to consider:
- Compatibility: Make sure the module is compatible with your drone and goggles
- Frequency: Choose a module that operates on a frequency that is legal to use in your area, and that is not crowded in your location
- Antenna Connections: Consider the number of antenna connections the module offers and if it meets your needs
- Range: Look for a module that offers a good range and signal strength
- Interference reduction: Look for a module that has advanced technology for interference reduction
- User-friendly interfaces with built-in OSD and firmware update support are also important factors.
- It’s also important to research the module’s reputation and read reviews from other users to understand its performance and reliability.
In conclusion, choosing the best FPV goggles receiver module is vital for any FPV drone enthusiast. Features such as high sensitivity, low latency, and advanced antenna switching algorithms are crucial for smooth and stable video transmission.
Additionally, compatibility with a wide range of FPV goggles, video transmitters, and output power is a must for long range flights requirements. It is essential to consider your specific needs and preferences when choosing the right module for your setup. With the suitable receiver module, you can ensure you get the most out of your FPV drone and experience the thrill of flying at its best.
